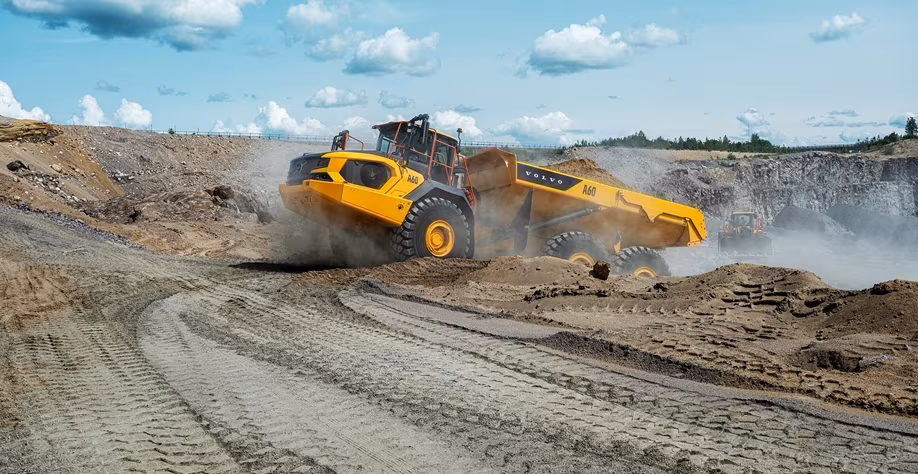

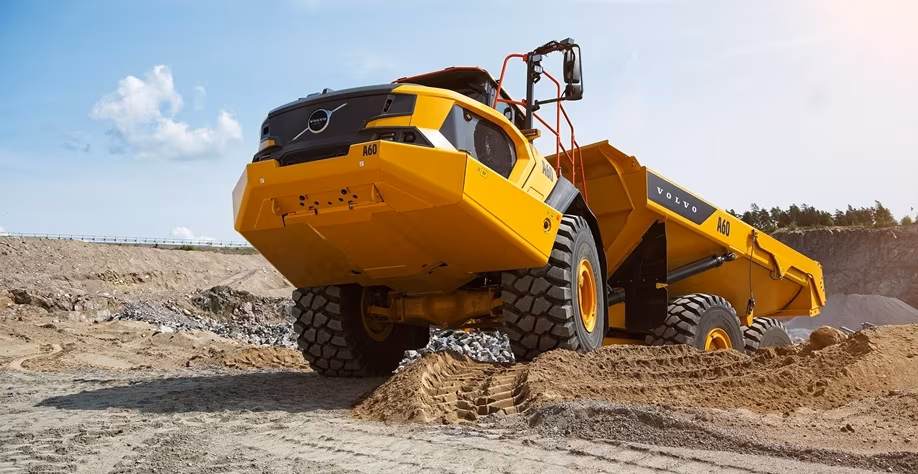

Volvo A60H Articulated Hauler
Volvo A60H Articulated Hauler - Image 2
Volvo A60H Articulated Hauler - Image 3
Volvo A60H Articulated Hauler - Image 4
Volvo A60H Articulated Hauler - Image 5

Volvo A60H Articulated Hauler

  • $710,000.00

Take your operation to a new level thanks to up to 5% more productivity, along with up to a 15% increase in fuel efficiency, compared to the previous generation.

Category:

Volvo A60H Articulated Hauler

A high-capacity articulated hauler designed for demanding quarrying, mining, earthmoving, construction, and heavy off-road hauling applications. The Volvo A60H combines a 55,000 kg / 60.6 US ton payload capacity with a 33.6 m³ / 43.9 yd³ heaped body, a powerful 470 kW / 630 hp Volvo D16J diesel engine, 6×6 all-wheel drive, and a maximum travel speed of 55 km/h / 34.2 mph. Its matched drivetrain, automatic traction control, all-terrain bogie, hydro-mechanical steering, and active front suspension provide excellent performance and stability in demanding terrain.

Specifications

Payload Capacity: 55,000 kg / 121,254 lb
Payload Capacity: 60.6 US tons
Body Volume – SAE 2:1 Heaped: 33.6 m³ / 43.9 yd³
Net Weight: 43,750 kg / 96,452 lb
Gross Weight: 98,750 kg / 217,706 lb
Maximum Travel Speed: 55 km/h / 34.2 mph
Drive Configuration: 6×6
Machine Type: Articulated Hauler
Application: Quarrying, Mining, Earthmoving and Heavy Construction
Production Years: 2016–2024

Engine

Engine Model: Volvo D16J
Engine Type: 6-Cylinder Turbocharged Diesel
Configuration: Inline 6-Cylinder
Displacement: 16.1 L / 982 in³
Maximum Gross Power: 470 kW / 630 hp
Rated Engine Speed: 1,800 rpm
Maximum SAE J1349 Gross Torque: 2,960 Nm / 2,183 lb-ft
Maximum Torque Speed: 1,050 rpm
Net Power: 467 kW / 626 hp
Engine Emissions: Tier 4 Final / Stage IV Configuration
Fuel Type: Diesel
Engine Manufacturer: Volvo
Cooling: Liquid Cooled
Turbocharging: Standard
Air-to-Air Aftercooling: Standard
Engine Management: Electronic Engine Management

Transmission

Transmission Type: Automatic Powershift
Transmission: Volvo Automatic Transmission
Forward Gears: Automatic Multi-Speed
Reverse Gears: Automatic
Transmission Control: Electronic
Torque Converter: Lock-Up Torque Converter
Automatic Shifting: Standard
OptiShift: Standard
Drive Combination: Automatic Drive Combination
Maximum Travel Speed: 55 km/h / 34.2 mph
Drivetrain: Matched Volvo Powertrain

Drivetrain

Drive: 6×6 All-Wheel Drive
Traction Control: Automatic
Differential Locks: 100% Locking Capability
Front Drive: Powered
Center Drive: Powered
Rear Drive: Powered
Final Drives: Heavy-Duty Planetary
Drive Axles: Volvo Heavy-Duty Axles
Automatic Traction Control: Standard
Terrain Memory: Available
Drivetrain Design: Matched Volvo Powertrain

Dump Body

Body Type: Articulated Hauler Dump Body
Body Volume – SAE 2:1 Heaped: 33.6 m³ / 43.9 yd³
Body Capacity: 33.6 m³ / 43.9 yd³
Body Design: Heavy-Duty Off-Road Dump Body
Body Material: High-Strength Wear-Resistant Steel
Dump System: Hydraulic
Dump Angle: 70°
Body Heating: Available
Body Liner: Available
Tailgate: Optional
Tailgate Configuration: Available Depending on Application
Dump Support System: Standard
Automatic Dump Support: Standard

Dump Hydraulics

Dump System: Hydraulic Hoist
Dump Control: Electronic Hydraulic Control
Dump Support: Standard
Load and Dump Brake: Standard
Body Lowering: Controlled Hydraulic Lowering
Dumping Control: Operator Controlled
Hydraulic System: Heavy-Duty Load-Sensing System
Hydraulic Cooling: Standard

Steering

Steering Type: Hydro-Mechanical Steering
Steering System: Hydraulic Power Steering
Steering Angle: 45°
Steering Control: Hydro-Mechanical
Steering Lock: Automatic
Secondary Steering: Standard
Steering Pump: Heavy-Duty Hydraulic Pump
Articulated Steering: Standard
Articulation Joint: Heavy-Duty Center Articulation

Articulation & Frame

Articulation Type: Center-Hinged Articulated Frame
Articulation Angle: 45°
Frame Oscillation: Standard
Frame Design: Heavy-Duty Box-Section Frame
Front Frame: Heavy-Duty Welded Construction
Rear Frame: Heavy-Duty Welded Construction
Rotating Hitch: Standard
Hitch Design: Heavy-Duty Maintenance-Friendly Hitch

Suspension

Front Suspension: Active Hydraulic Suspension
Rear Suspension: All-Terrain Bogie
Suspension Type: Hydro-Mechanical / Hydraulic
Front Suspension Cylinders: Hydraulic
Active Front Suspension: Standard
Rear Bogie: All-Terrain Bogie
Suspension Control: Automatic
Ride Control: Standard
Suspension Purpose: Improved Stability and Operator Comfort
High-Speed Hauling: Supported by Active Front Suspension

Braking System

Service Brakes: Oil-Cooled Wet Multi-Disc Brakes
Brake Type: Hydraulic Wet Multi-Disc
Parking Brake: Spring-Applied, Hydraulic-Released
Emergency Brake: Standard
Load and Dump Brake: Standard
Retarder: Engine and Transmission Retarding
Automatic Retarding: Available
Brake Cooling: Oil Cooled
Hill Assist: Standard
Brake System: Heavy-Duty All-Wheel Braking

Traction Control

Automatic Traction Control: Standard
Traction Control Type: Automatic Differential Lock Control
Differential Lock: 100%
Wheel Slip Control: Automatic
Inter-Axle Differential Lock: Automatic
Cross-Axle Differential Lock: Automatic
Terrain Memory: Available
Traction Management: Automatic
Drive Mode Selection: Automatic
Low Traction Management: Standard

Dimensions

Overall Length: 12,225 mm / 40 ft 1.4 in
Overall Width: 3,370 mm / 11 ft 0.7 in
Overall Height: 3,989 mm / 13 ft 1 in
Wheelbase: 6,900 mm / 22 ft 7.5 in
Front Axle to Cab: Configuration Dependent
Ground Clearance: 677 mm / 2 ft 2.7 in
Dump Body Width: Configuration Dependent
Dump Body Height: Configuration Dependent
Overall Height with Standard Tires: Approximately 3.99 m / 13 ft 1 in
Overall Length with Standard Body: Approximately 12.23 m / 40 ft 1 in
Minimum Turning Radius: Configuration Dependent
Maximum Steering Angle: 45°
Angle of Approach: Approximately 24.9°

Operating Weights

Net Weight: 43,750 kg / 96,452 lb
Payload: 55,000 kg / 121,254 lb
Gross Weight: 98,750 kg / 217,706 lb
Empty Weight: 43,750 kg / 96,452 lb
Loaded Weight: 98,750 kg / 217,706 lb
Maximum Payload: 55,000 kg / 121,254 lb
Payload Class: 60.6 US Tons

Tires

Standard Tire Size: 33.25R29
Tire Type: Radial Earthmover
Tire Configuration: 6 Tires
Drive Tires: All-Wheel Drive
Tire Application: Heavy-Duty Off-Road
Optional Tires: Application Dependent
Wide Tire Options: Available
Mining Tire Options: Available
Traction Tire Options: Available

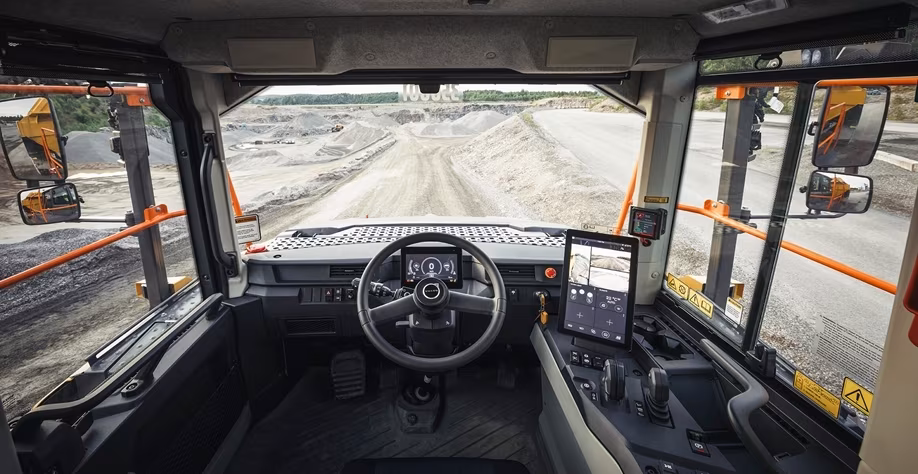

Operator Cab

Cab Type: Volvo Articulated Hauler Cab
Cab Protection: ROPS/FOPS
ROPS: Standard
FOPS: Standard
Operator Seat: Air-Suspension Operator Seat
Seat Adjustment: Fully Adjustable
Seat Belt: Standard
Steering Column: Adjustable
Air Conditioning: Standard
Heating: Standard
Defrosting: Standard
Climate Control: Automatic
Visibility: Enhanced Operator Visibility
Rearview Mirrors: Standard
Cab Pressurization: Standard
Cab Noise Reduction: Standard
Operator Controls: Ergonomically Positioned
Display: Volvo Co-Pilot / Machine Information Display
Rear Camera: Available
Trainer Seat: Available

Instrumentation

Operator Display: Volvo Co-Pilot Display
Machine Monitoring: Standard
Engine Monitoring: Standard
Transmission Monitoring: Standard
Hydraulic Monitoring: Standard
Fuel Level: Standard
Engine Temperature: Standard
Transmission Temperature: Standard
Brake System Monitoring: Standard
Warning System: Standard
Diagnostic System: Standard
Service Information: Standard
Travel Speed: Displayed
Selected Gear: Displayed
Payload Information: Available
Production Information: Available

Payload Management

Payload Capacity: 55,000 kg / 121,254 lb
On-Board Weighing System: Available
Payload Monitoring: Available
Load Optimization: Standard
Payload Display: Available
Overload Monitoring: Available
Cycle Monitoring: Available
Production Monitoring: Available
Haul Assist: Available
Connected Load Out: Available

Fuel & Service Capacities

Fuel Tank: Configuration Dependent
Hydraulic Reservoir: Configuration Dependent
Engine Oil: Configuration Dependent
Cooling System: Liquid Cooled
Transmission Oil: Configuration Dependent
Axle Oil: Configuration Dependent
AdBlue/DEF: Tier 4 Final / Stage IV Configuration Dependent
Automatic Lubrication: Available
Central Lubrication: Available
Service Access: Ground-Level Service Points
Service Intervals: Extended Volvo Service Intervals

Electrical System

Electrical System: 24V
Batteries: Heavy-Duty Maintenance-Free Batteries
Alternator: Heavy-Duty Alternator
Lighting: LED Available
Headlights: Standard
Work Lights: Standard
Rear Lights: Standard
Brake Lights: Standard
Turn Signals: Standard
Warning Beacon: Available
Emergency Lighting: Available

Technology & Monitoring

Volvo Co-Pilot: Available
Haul Assist: Available
On-Board Weighing: Available
Connected Load Out: Available
Terrain Memory: Available
Automatic Traction Control: Standard
Machine Monitoring: Standard
Fleet Management: Available
Remote Monitoring: Available
Machine Health Monitoring: Available
Production Monitoring: Available
Fuel Consumption Monitoring: Available
Diagnostic Monitoring: Standard

Safety Features

ROPS/FOPS Cab: Standard
Hill Assist: Standard
Load and Dump Brake: Standard
Dump Support System: Standard
Automatic Traction Control: Standard
Secondary Steering: Standard
Hydro-Mechanical Steering: Standard
100% Differential Locks: Standard
Rearview Mirrors: Standard
Operator Seat Belt: Standard
Emergency Brake: Standard
Automatic Retarding: Available
Rear Camera: Available
Fire Suppression: Available
Fire Detection: Available
LED Warning Lights: Available

Features

55,000 kg / 121,254 lb Payload: Standard
60.6 US Ton Payload: Standard
33.6 m³ / 43.9 yd³ Heaped Body: Standard
470 kW / 630 hp Volvo D16J Engine: Standard
16.1 L Diesel Engine: Standard
2,960 Nm / 2,183 lb-ft Maximum Torque: Standard
55 km/h / 34.2 mph Maximum Speed: Standard
6×6 All-Wheel Drive: Standard
Automatic Traction Control: Standard
100% Differential Locks: Standard
All-Terrain Bogie: Standard
Active Hydraulic Front Suspension: Standard
Hydro-Mechanical Steering: Standard
45° Steering Angle: Standard
Oil-Cooled Wet Multi-Disc Brakes: Standard
Hill Assist: Standard
Load and Dump Brake: Standard
Dump Support System: Standard
OptiShift: Standard
Automatic Drive Combinations: Standard
33.25R29 Tires: Standard
ROPS/FOPS Cab: Standard
Air-Suspension Operator Seat: Standard
Automatic Climate Control: Standard
Volvo Co-Pilot: Available
Haul Assist: Available
On-Board Weighing System: Available
Connected Load Out: Available
Terrain Memory: Available
Rear Camera: Available
Automatic Lubrication: Available
Fire Suppression: Available
Body Liner: Available
Body Heating: Available
Tailgate: Available
Heavy-Duty Tire Options: Available
Fleet Management: Available
Remote Machine Monitoring: Available

Related products

  • Sandvik TH663i Underground Truck

    Sandvik TH663i Underground Truck

    Hire

    • Day Rate

      $1,099,000.00 / Day
    Toro® TH663i truck with its 63-tonne payload capacity is purpose-built for underground environments, offering a potent combination of intelligence, high productivity and sustainability within a single dump truck.
    Request Quote
  • Komatsu HD605-8 Mining Dump Truck

    Komatsu HD605-8 Mining Dump Truck

    Hire

    • Day Rate

      $979,000.00 / Day
    The Komatsu HD605-8 Mechanical Truck is a 69.4 ton capacity truck that has proven its worth in mines around the world. The HD605-8 has a top loaded speed of 43.5 mph and great climbing power to get out of the pit quickly, dump and cycle back for high production. The oil-cooled wet multi-disc retarder gives the operator great controllability on downhill slopes. The frame design is consistent with Komatsu’s largest mining trucks to handle the stress and strains of mining to fit a long productive and trouble free life. Komatsu Traction Control (KTCS) is standard for optimum traction in all ground conditions.
    Request Quote
  • Komatsu PC7000 Mining Excavator

    Komatsu PC7000 Mining Excavator

    Hire

    • Day Rate

      $8,300,000.00 / Day
    The Komatsu PC7000 mining machine is a large-scale heavy-duty excavator used for industrial-level mining operations. This diesel machine has two powerful 1,250 kW / 1,675 HP engines with enhanced management, adjustable idle shutdown and improved hydraulic efficiency.
    Request Quote
  • CAT 745 Articulated Truck

    CAT 745 Articulated Truck

    Hire

    • Day Rate

      $990,000.00 / Day
    The Cat® 745 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.
    Request Quote

Footer

About Company

We at drillex construction make it easier to find the right equipment, with expert guidance, competitive solutions, and dependable support from selection to delivery.

contact info

Recent Post
