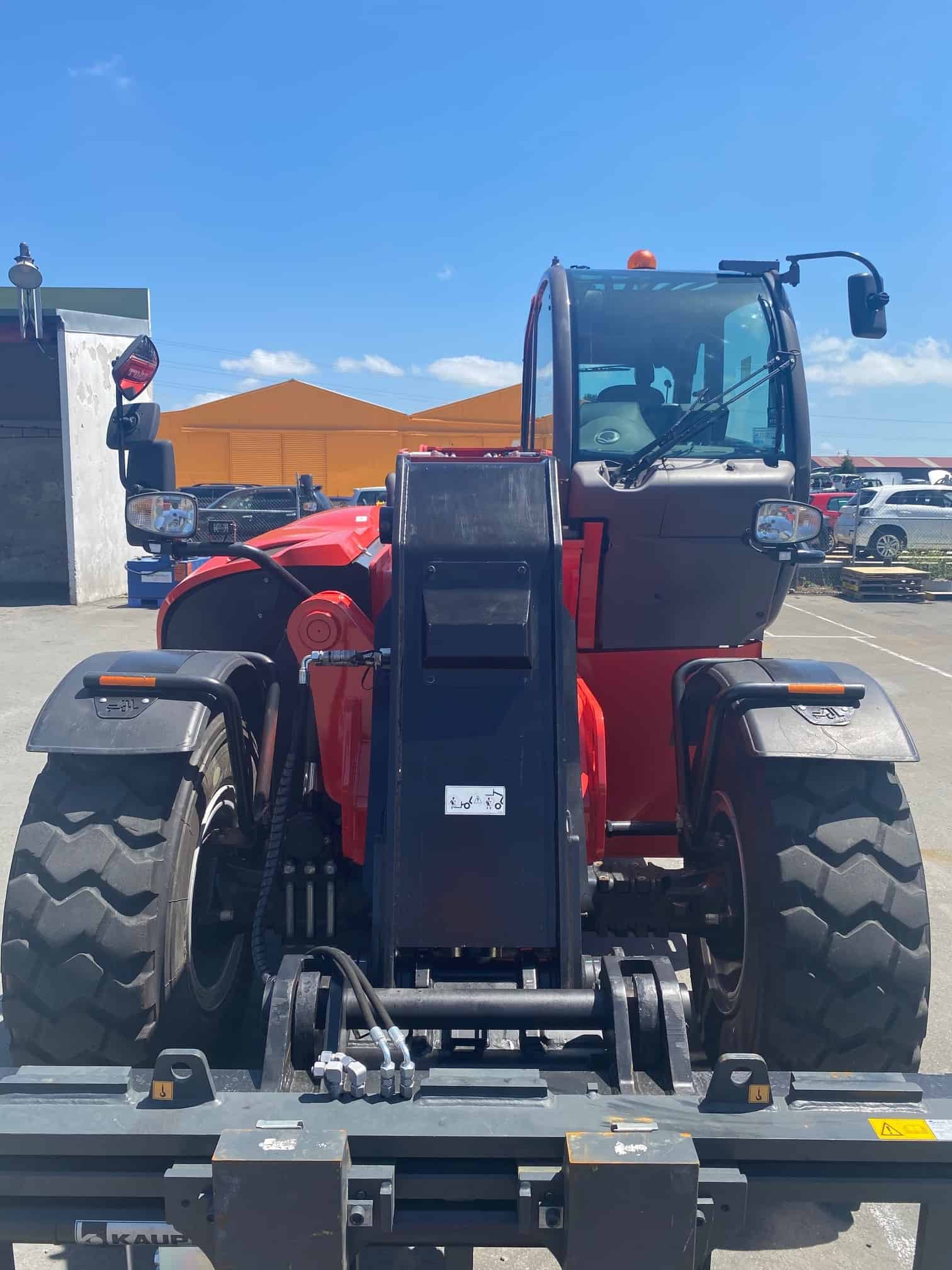

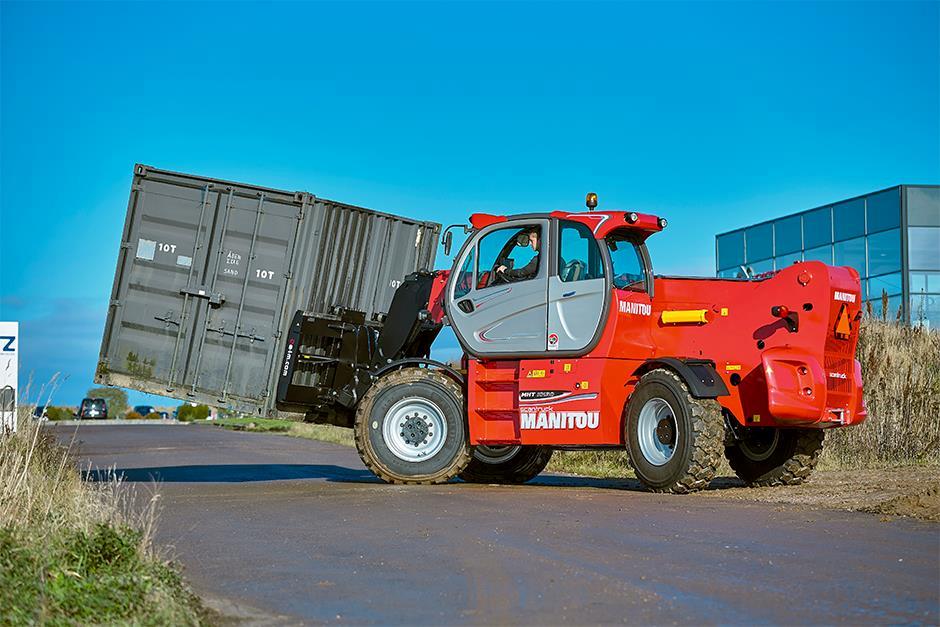

Manitou MHT 10130 Telehandler
A heavy-duty all-terrain telehandler designed for demanding material handling applications in construction, mining, quarrying, oil and gas, infrastructure, and industrial environments. The Manitou MHT 10130 combines a 28,660 lb / 13,000 kg maximum lifting capacity with a 31 ft 7.9 in / 9.62 m maximum lifting height and 16 ft 11.6 in / 5.17 m maximum horizontal outreach. With four-wheel drive, three steering modes, ±10° frame leveling, hydrostatic transmission, and a high-capacity load-sensing hydraulic system, the MHT 10130 is built to handle heavy and bulky loads across challenging terrain.
Specifications
Maximum Lifting Capacity: 28,660 lb / 13,000 kg Maximum Capacity with Forks at 600 mm Load Center: 28,660 lb / 13,000 kg Capacity at Maximum Forward Reach: Approximately 7,716 lb / 3,500 kg Maximum Lifting Height: 31 ft 7.9 in / 9.62 m Maximum Horizontal Outreach: 16 ft 11.6 in / 5.17 m Load Center: 23.6 in / 600 mm Frame Leveling: ±10° Maximum Travel Speed: 19.3 mph / 31 km/h Gradeability: 34% Laden Drawbar Pull: 24,280 lb / 11,010 kg Operating Weight with Forks: 40,763 lb / 18,490 kg
Engine
Engine Make: Mercedes-Benz Engine Model: OM 934 LA. E4-3 Engine Type: 4-Cylinder Turbocharged Diesel Displacement: 5.1 L Rated Power: 176 hp / 129 kW Maximum Torque: 553 lb-ft / 750 Nm Maximum Torque Speed: 1,200–1,600 rpm Cooling System: Water Cooled Fuel Type: Diesel Emissions: Stage IV / Tier 4 Final Electrical System: 24V Batteries: 2 x 12V, 120 Ah, 850 A
Boom & Lift System
Boom Type: Telescopic Boom Maximum Lift Height: 31 ft 7.9 in / 9.62 m Maximum Forward Reach: 16 ft 11.6 in / 5.17 m Maximum Lift Capacity: 28,660 lb / 13,000 kg Capacity at Maximum Reach: Approximately 7,716 lb / 3,500 kg Load Center: 23.6 in / 600 mm Boom Extension Time, Unladen: 16.1 seconds Boom Retraction Time, Unladen: 10 seconds Boom Raising Time, Unladen: 15.2 seconds Boom Lowering Time, Unladen: 13.8 seconds Attachment Crowd Time: 6.6 seconds Attachment Dump Time: 5.3 seconds Load Limiter: Standard Load Limiter Cut-Off System: EN 15000 Compliant
Hydraulic System
Pump Type: Load-Sensing Variable Displacement Pump Maximum Hydraulic Flow: 47.6 gpm / 180 L/min Maximum Hydraulic Pressure: 4,351 psi / 300 bar Hydraulic Oil Capacity: 76.6 gal / 290 L Hydraulic System: Load Sensing Auxiliary Hydraulics: Available for Attachments Hydraulic Controls: JSM® Multifunction Joystick
Transmission
Transmission Type: Hydrostatic Gears: 2 Forward / 2 Reverse Reversing Shift: Electrohydraulic Drive: Four-Wheel Drive Maximum Travel Speed: 19.3 mph / 31 km/h Drawbar Pull: 24,280 lb / 11,010 kg
Steering & Chassis
Drive: 4WD Steering Modes: 3 Steering Modes: 2-Wheel Steer, 4-Wheel Steer and Crab Steer Frame Leveling: ±10° Axles: Dana Service Brakes: Oil-Bath Multiple-Disc Brakes, Hydraulically Assisted on Both Axles Parking Brake: Automatic Negative Parking Brake Ground Clearance: 17.3 in / 440 mm Turning Radius Over Tires: 17 ft 6.2 in / 5.34 m
Dimensions
Overall Length to Carriage: 20 ft 1.7 in / 6.14 m Overall Width: 8 ft 2.8 in / 2.51 m Overall Height: 9 ft 9.7 in / 2.99 m Ground Clearance: 17.3 in / 440 mm Turning Radius Over Tires: 17 ft 6.2 in / 5.34 m Wheelbase: Approximately 11 ft 1 in / 3.38 m Operating Weight with Forks: 40,763 lb / 18,490 kg
Tires & Undercarriage
Standard Tires: 17.5 R25 Tire Type: All-Terrain Drive: Four-Wheel Drive Steering: Four-Wheel Steering Ground Clearance: 17.3 in / 440 mm Axles: Heavy-Duty Dana Axles
Forks & Attachment
Standard Fork Length: 47.2 in / 1,200 mm Standard Fork Width: 7.9 in / 200 mm Standard Fork Thickness: 2.8 in / 70 mm Fork Load Center: 23.6 in / 600 mm Attachment Carrier: Heavy-Duty Fork Carriage Attachment System: Manitou Attachment Interface Attachment Recognition: Available / E-Reco Compatible Attachments: Forks, Buckets, Grapples, Clamps, Work Platforms and Specialized Heavy-Duty Attachments
Operator Station
Cab: ROPS/FOPS Level II Cab Protection: ROPS/FOPS Level 2 Controls: JSM® Multifunction Joystick Joystick Functions: Boom, Attachment and Auxiliary Hydraulic Functions Visibility: 360° Operator Visibility Seat: Adjustable Suspension Seat Steering: Multi-Mode Steering Heating: Standard Air Conditioning: Available Display: Machine Information Display Noise at Operator Position: 80 dB(A) Environmental Noise: 107 dB(A)
Fuel & Service Capacities
Fuel Tank Capacity: 83.2 gal / 315 L Hydraulic Oil Capacity: 76.6 gal / 290 L Urea/DEF Capacity: 16.6 gal / 63 L Engine Oil Capacity: Approximately 5.5 gal / 20.8 L Electrical System: 24V
Features
28,660 lb Maximum Lift Capacity: Standard 31 ft 7.9 in Maximum Lift Height: Standard 16 ft 11.6 in Maximum Horizontal Reach: Standard 176 hp Mercedes-Benz Diesel Engine: Standard 4WD: Standard Three Steering Modes: Standard Hydrostatic Transmission: Standard ±10° Frame Leveling: Standard Load-Sensing Hydraulic System: Standard 180 L/min Hydraulic Pump: Standard JSM® Multifunction Joystick: Standard EN 15000 Load Limiter: Standard ROPS/FOPS Level II Cab: Standard Oil-Bath Multiple-Disc Brakes: Standard Automatic Negative Parking Brake: Standard 17.5 R25 Tires: Standard Heavy-Duty Dana Axles: Standard 360° Operator Visibility: Standard E-Reco Attachment Recognition: Available Air Conditioning: Available Specialized Mining Attachments: Available Heavy-Duty Forks: Standard Work Platforms: Available Bucket Attachments: Available Clamps and Grapples: Available
