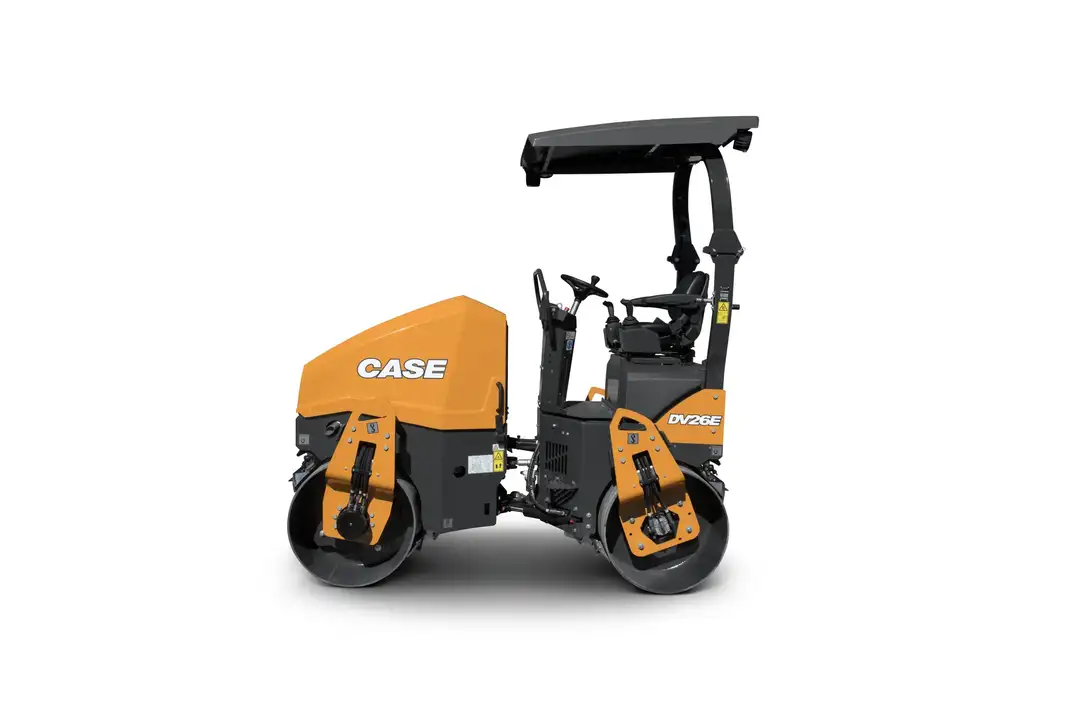

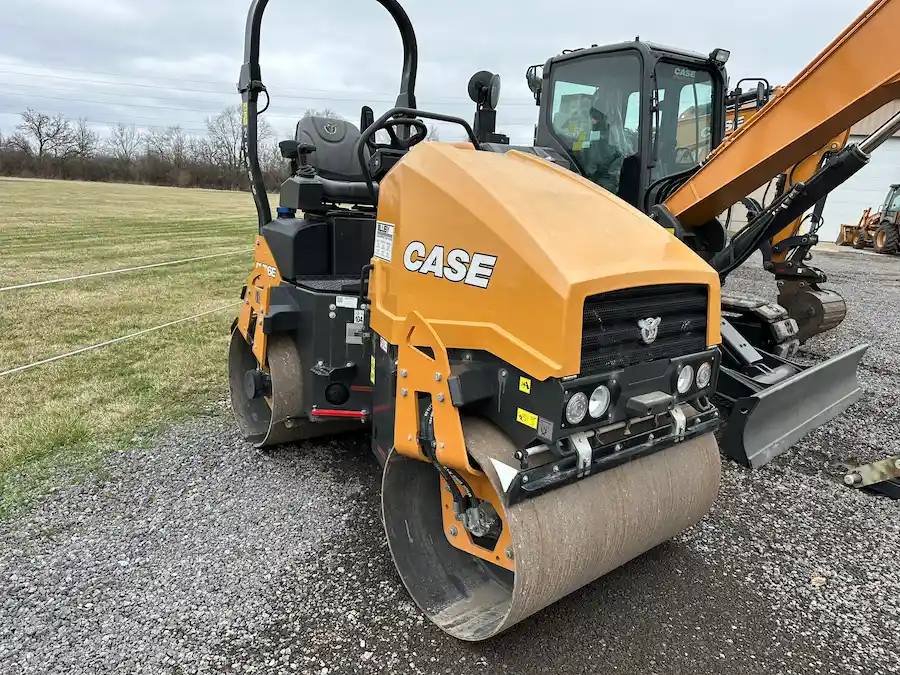

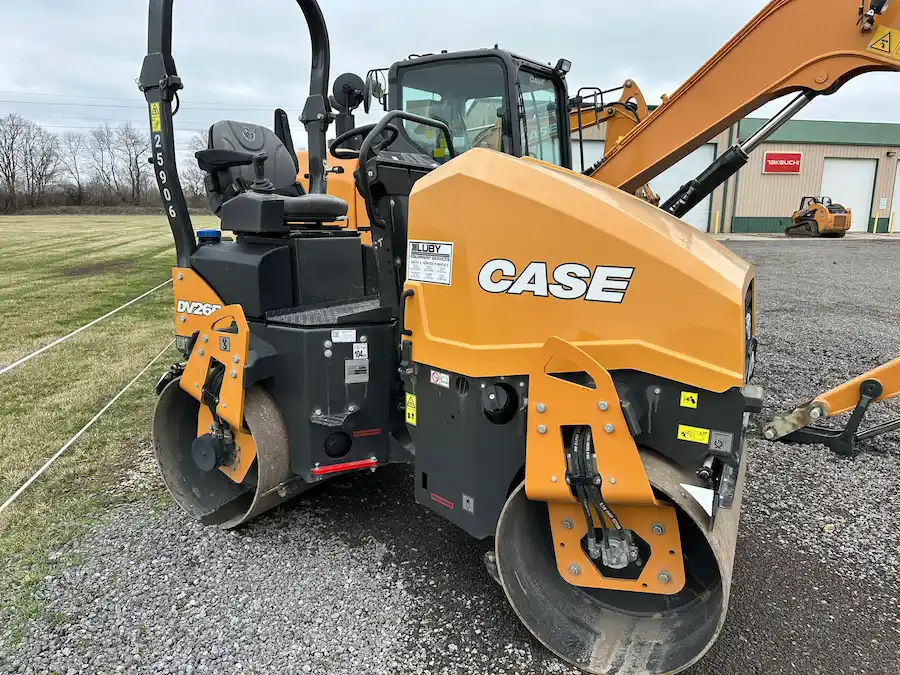

CASE DV26E Double Drum Roller
A compact and highly productive double drum vibratory roller designed for asphalt compaction, roadway construction, parking lots, utility work, and other demanding paving applications. The CASE DV26E combines a 33.5 hp / 25 kW diesel engine with a 47.2 in / 1.20 m drum width, dual-drum vibration, selectable dual-frequency vibration, and hydrostatic drive. Its articulated chassis, tight turning radius, and foldable ROPS make the DV26E easy to maneuver and transport while providing excellent compaction performance in confined work areas.
Specifications
Operating Weight: 5,490 lb / 2,490 kg Maximum Operating Weight: Approximately 5,970 lb / 2,710 kg Front Static Linear Load: 22.7 lb/in / 10.3 kg/cm Drum Width: 47.2 in / 1.20 m Drum Diameter: 27.4 in / 695 mm Drum Thickness: 0.5 in / 13 mm Maximum Travel Speed: 6.8 mph / 11 km/h Maximum Working Speed: 3.7 mph / 6.0 km/h Gradeability: 30% Inside Turning Radius: 100 in / 2.54 m Outside Turning Radius: 153.9 in / 3.91 m
Engine
Engine Make/Model: Kubota D1803 Engine Type: 3-Cylinder Diesel Displacement: 111 in³ / 1.826 L Gross Power: 33.5 hp / 25 kW Rated Speed: 2,400 rpm Maximum Torque: 85.4 lb-ft / 115.8 Nm Maximum Torque Speed: 1,500 rpm Emissions Certification: Tier 4 Final Fuel Type: Diesel Fuel Tank Capacity: 9.2 gal / 35 L Engine Oil Capacity: 7.4 qt / 7 L Cooling System: Liquid Cooled
Vibration System
Vibration Type: Dual Drum Vibration Vibration Frequency: Dual Frequency Low Frequency: 3,480 vpm / 58 Hz High Frequency: 3,960 vpm / 66 Hz Amplitude: 0.02 in / 0.53 mm Number of Amplitudes: 1 Centrifugal Force – Each Drum: 10,566 lb / 47 kN Vibration Control: Front / Dual Drum Vibration Stop: Automatic in Neutral Vibration Drive: Hydrostatic
Drums
Drum Configuration: Tandem / Double Drum Drum Type: Smooth Steel Drum Width: 47.2 in / 1,200 mm Drum Diameter: 27.4 in / 695 mm Drum Thickness: 0.5 in / 13 mm Drum Offset: 1.6 in / 40 mm Drum Edges: Tapered Drum Scrapers: Adjustable Vulcollon Scrapers Drum Drive: Hydrostatic Drum Vibration: Front and Rear
Propulsion & Drive
Drive System: Hydrostatic Drive: Hydrostatic Drive to Both Drums Drive Pump: Variable Displacement Drive Motors: Variable Displacement Maximum Travel Speed: 6.8 mph / 11 km/h Maximum Working Speed: 3.7 mph / 6.0 km/h Drive Settings: Two Traction Assist: Available Parking Brake: SAHR Service Brake: Hydrostatic Emergency Brake: SAHR
Steering & Chassis
Steering Type: Hydrostatic Chassis: Articulated Steering Angle: 30° Left / Right Oscillation Angle: ±6.5° Inside Turning Radius: 100 in / 2,540 mm Outside Turning Radius: 153.9 in / 3,910 mm Ground Clearance: 11 in / 280 mm Articulated Frame: Standard
Dimensions
Wheelbase: 68.5 in / 1,740 mm Overall Length – ROPS Down: 101.8 in / 2,585 mm Overall Length – ROPS Up: 98.4 in / 2,500 mm Overall Width: 53.1 in / 1,350 mm Overall Height – ROPS Up: 100.4 in / 2,550 mm Folded ROPS Height: 76.2 in / 1,935 mm Drum Width: 47.2 in / 1,200 mm Drum Diameter: 27.4 in / 695 mm Ground Clearance: 11 in / 280 mm
Water System
Water Tank Capacity: 50.2 gal / 190 L Water Tank Material: Polyethylene Water System: Pressurized Water Filtration: 2-Stage Water System Drains: Standard Water Distribution: Front and Rear Drum Water Pump: Pressurized Water System Water Tank Capacity: 50.2 gal / 190 L
Hydraulic System
Hydraulic System: Hydrostatic Hydraulic Pump Type: Gear Vibratory Pump: Gear Maximum Relief Pressure: 5,221 psi / 360 bar Hydraulic Oil Cooler: Standard Hydraulic Reservoir Capacity: 7.1 qt / 6.7 L Drum Drive: Hydrostatic Vibration Drive: Hydrostatic Steering: Hydrostatic
Operator Station
ROPS: Foldable ROPS Operator Seat: Lateral Sliding Suspension Seat Seat: Foldable Armrests Seat Belt: 3 in / 76.2 mm Retractable Controls: Electronic Single-Lever Speed and Direction Control Integrated Controls: RPM Setting, Parking Brake, Vibration, Water Spray and Edge Cutter Steering: Steering Wheel with Spinner Knob Emergency Stop: Standard Instrument Panel: Electronic Anti-Vandal Guard: Standard Weather Canopy: Available Steel Canopy: Available Heated Seat: Available
Electrical System
Electrical System: 12V Battery: 12V / 77 Ah Cold Cranking Amps: 760 CCA Work Lights: Available Road Lights: Available Turn Signals: Available Flashing Beacon: Available Backup Alarm: Standard Horn: Standard Master Disconnect: Standard Hourmeter: Standard
Service Capacities
Fuel Tank: 9.2 gal / 35 L Engine Oil: 7.4 qt / 7 L Hydraulic System Reservoir: 7.1 qt / 6.7 L Water Tank: 50.2 gal / 190 L
Features
33.5 hp Kubota Diesel Engine: Standard 47.2 in Vibratory Drum: Standard Dual Drum Vibration: Standard Dual Frequency Vibration: Standard 3,480–3,960 vpm Vibration: Standard 10,566 lb Centrifugal Force per Drum: Standard Hydrostatic Drive: Standard Hydrostatic Drum Drive: Standard Articulated Chassis: Standard Foldable ROPS: Standard 30% Gradeability: Standard 50.2 gal Pressurized Water System: Standard 2-Stage Water Filtration: Standard Adjustable Vulcollon Scrapers: Standard Automatic Vibration Stop in Neutral: Standard Two Drive Settings: Standard Anti-Vandal Guard: Standard Traction Assist: Available Tiltable Drum Scraper: Available Infrared Thermometer: Available Edge Cutter: Available Heated Seat: Available Weather Canopy: Available ACE Force Intelligent Compaction: Available Rotating Beacon: Available Road Lights: Available Work Lights: Available
