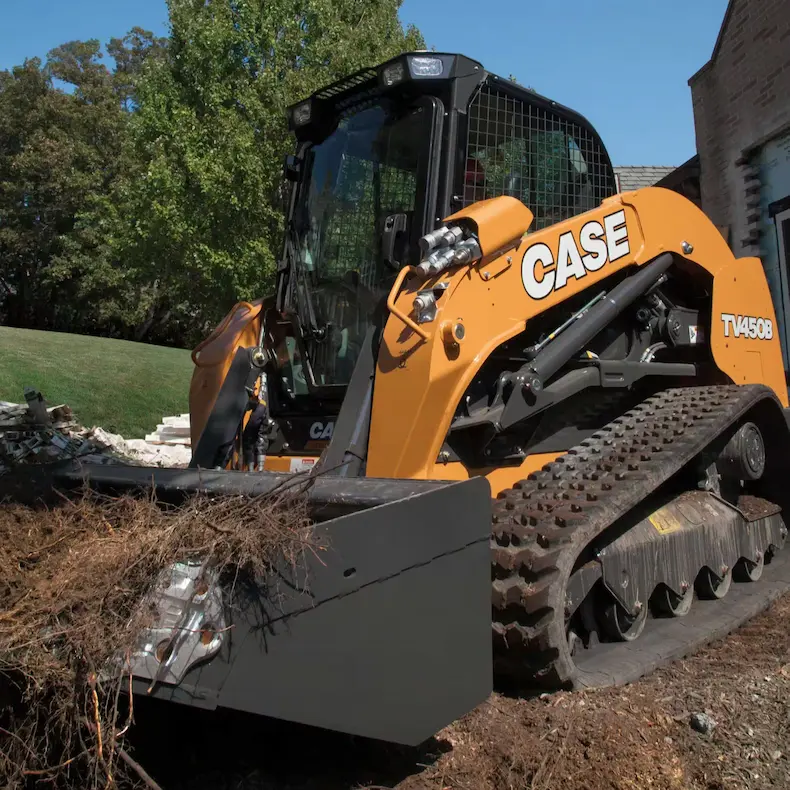

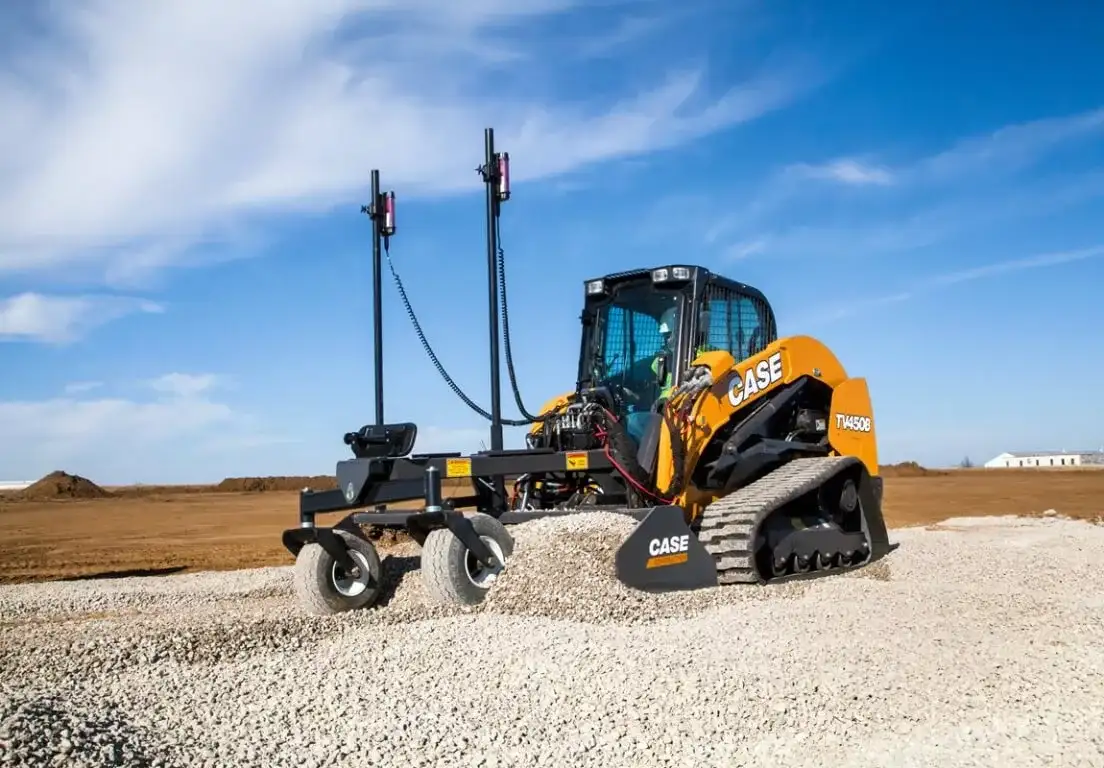

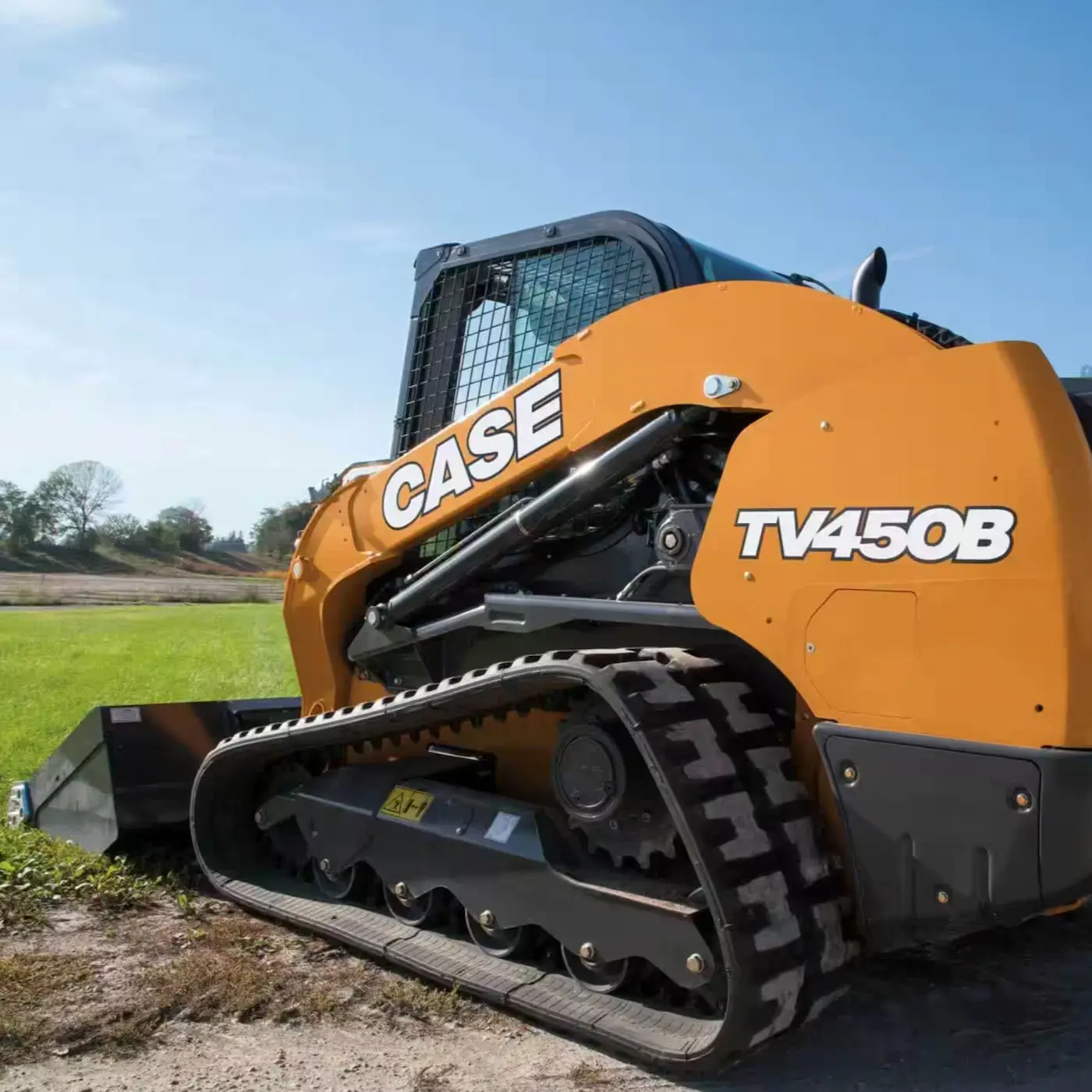

2024 CASE TV450B Skid Steer
A powerful and versatile compact track loader designed for demanding construction, excavation, grading, landscaping, material handling, and attachment applications. The CASE TV450B combines a 90 hp / 67 kW diesel engine with a 4,500 lb / 2,045 kg rated operating capacity at 50% tipping load, 9,000 lb / 4,091 kg tipping load, and vertical-lift loader geometry for excellent reach at maximum height. With low ground pressure, 450 mm tracks, and optional high-flow hydraulics, the TV450B provides the power, stability, and attachment versatility needed for demanding jobsites.
Specifications
Rated Operating Capacity at 35% Tipping Load: 3,150 lb / 1,432 kg Rated Operating Capacity at 50% Tipping Load: 4,500 lb / 2,045 kg Rated Operating Capacity with Additional Counterweight: 4,700 lb / 2,135 kg Tipping Load: 9,000 lb / 4,091 kg Operating Weight: 10,610 lb / 4,823 kg Loader Geometry: Vertical Lift Maximum Travel Speed: Up to 8.0 mph / 12.9 km/h Ground Pressure: Approximately 4.6 psi / 31.7 kPa Lift Breakout Force: 7,773 lb / 3,526 kg Bucket Breakout Force: 9,188 lb / 4,168 kg
Engine
Engine Make/Model: FPT F5B FL413 D*C001 Engine Type: 4-Cylinder Turbocharged Diesel Displacement: 207 in³ / 3.4 L Gross Power: 90 hp / 67 kW Net Power: 84 hp / 63 kW Rated Engine Speed: 2,500 rpm Peak Torque: 282 lb-ft / 383 Nm Peak Torque Speed: 1,400 rpm Emissions Certification: Tier 4 Final Fuel: Diesel Fuel Tank Capacity: 25.5 gal / 96.5 L Engine Oil Capacity with Filter: 8.9 qt / 8.5 L DEF Tank Capacity: 2.8 gal / 10.7 L
Loader & Lift
Lift Configuration: Vertical Lift Height to Bucket Hinge Pin: 131.6 in / 3.34 m Overall Operating Height: Up to 170.4 in / 4.33 m, depending on bucket Dump Height: Approximately 101–104 in / 2.57–2.65 m, depending on bucket Maximum Dump Angle: 45.3° Bucket Rollback at Ground: 32.0° Bucket Rollback at Full Height: 83.1° Lift Cylinder Bore: 2.75 in / 69.85 mm Lift Cylinder Rod Diameter: 1.75 in / 44.5 mm Lift Cylinder Stroke: 35.7 in / 908 mm Bucket Cylinder Bore: 3.0 in / 76.2 mm Bucket Cylinder Rod Diameter: 1.5 in / 38.1 mm Bucket Cylinder Stroke: 15.9 in / 405 mm
Hydraulic System
Standard Auxiliary Hydraulic Flow: 24.2 gpm / 91.5 L/min Standard Hydraulic Pressure: 3,450 psi / 238 bar High-Flow Auxiliary Hydraulics: 39.5 gpm / 149.5 L/min Enhanced High-Flow Option: Up to 35 gpm / 132.5 L/min at 4,000 psi / 276 bar Hydraulic Reservoir Capacity: 6.0 gal / 22.7 L Total Hydraulic System Capacity: 11.9 gal / 45.4 L Auxiliary Hydraulics: Standard Hydraulic Coupler: Available High-Flow Hydraulics: Available Enhanced High-Flow Hydraulics: Available
Dimensions
Overall Length with Foundry/Excavating Bucket: 144.6 in / 3.67 m Overall Length with Heavy-Duty Bucket: 148.6 in / 3.78 m Overall Length with Low-Profile Extended Bucket: 153.5 in / 3.90 m Overall Length without Attachment with Coupler: 120.2 in / 3.05 m Overall Width Over Tracks: 76.0 in / 1.93 m Track Width: 17.7 in / 450 mm Height to Top of ROPS: 80.4 in / 2.04 m Height to Bucket Hinge Pin: 131.6 in / 3.34 m Ground Clearance: 9.5 in / 24.1 cm Track Length on Ground: 64.5 in / 1.64 m Track Gauge: 58.6 in / 1.49 m Angle of Departure: 32° Clearance Circle without Bucket: 57.7 in / 1.47 m Rear Clearance Circle: 68.6 in / 1.74 m
Tracks & Undercarriage
Track Type: Rubber Track Standard Track Width: 17.7 in / 450 mm Track Gauge: 58.6 in / 1.49 m Track Length on Ground: 64.5 in / 1.64 m Ground Pressure: Approximately 4.6 psi / 31.7 kPa Undercarriage: Compact Track Loader Undercarriage Low Ground Pressure: Standard Track Drive: Hydrostatic Two-Speed Travel: Available
Performance
Maximum Travel Speed: 8.0 mph / 12.9 km/h Rated Operating Capacity: 4,500 lb / 2,045 kg at 50% tipping load Tipping Load: 9,000 lb / 4,091 kg Lift Breakout Force: 7,773 lb / 3,526 kg Bucket Breakout Force: 9,188 lb / 4,168 kg Lift Cycle Time: 5.1 seconds Lower Cycle Time: 3.5 seconds Bucket Dump Cycle Time: 2.7 seconds Bucket Rollback Cycle Time: 2.0 seconds
Operator Station
ROPS/FOPS: Level 1 Cab: Enclosed Cab Available Operator Controls: Electro-Hydraulic Controls Available Seat: Suspension Seat Seat Belt: 3-Point Retractable Lap Seat Belt Display: 8-Inch LCD Multifunction Display Rear Window: Emergency Escape Rearview Mirror: Standard Heating: Available Air Conditioning: Available Air-Ride Seat: Available Bluetooth Radio: Available
Attachments
Attachment Interface: Universal Skid Steer Quick Attach Standard Attachment: Bucket Bucket Options: Foundry/Excavating, Heavy-Duty and Low-Profile Extended Standard Bucket Width: Configuration Dependent Hydraulic Coupler: Available High-Flow Attachment Capability: Available Enhanced High-Flow Attachment Capability: Available Attachment Applications: Buckets, Forks, Grapples, Augers, Trenchers, Cold Planers, Brush Cutters and Other Hydraulic Attachments
Features
Vertical Lift Design: Standard 90 hp Diesel Engine: Standard 4,500 lb Rated Operating Capacity: Standard 9,000 lb Tipping Load: Standard 450 mm Tracks: Standard 24.2 gpm Auxiliary Hydraulics: Standard 39.5 gpm High-Flow Hydraulics: Available 35 gpm Enhanced High-Flow Hydraulics: Available Two-Speed Drive: Available Hydraulic Coupler: Available Self-Leveling: Available Ride Control: Available Electro-Hydraulic Controls: Available Enclosed Cab: Available Air Conditioning: Available Air-Ride Seat: Available LED Lighting: Available Block Heater: Available Rotating Beacon: Available Rear Tail Lights: Standard Single-Point Daily Servicing: Standard Lockable Service Access Hood: Standard Remote Oil and Fuel Filters: Standard Mounting Points for Additional Counterweights: Standard Low Ground Pressure: Standard Biodiesel Compatible: Standard
